Luxtherm 1/2" Thermostatic Valves

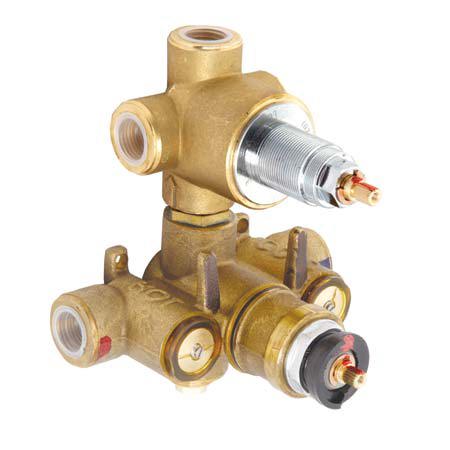

Luxtherm 1/2" Thermostatic Rough-In (3 Port Shared)
1-743
- No Finish
- Solid brass construction
- Rough-In with Integrated 3 Way Diverter with share function ports 1 and 2, and Shut Off Control.
- Built in check valves with service stops
- Flow rate of 8.0 gallons per minute at 60 psi
- Provides anti-scald protection and temperature regulation
- High-temperature safety stop ensures water temperature maximum is 100° F (37.7 C)°
- 1/2†NPT female thread (inlet and outlet) valve body
- Mounting tabs located on rough-in for secure installation option
- Requires Newport Brass Thermostatic Trim (many options available, sold-separately)
$741
Current Finish: No Finish NF
- No Finish
- Solid brass construction
- Rough-In with Integrated 3 Way Diverter with share function ports 1 and 2, and Shut Off Control.
- Built in check valves with service stops
- Flow rate of 8.0 gallons per minute at 60 psi
- Provides anti-scald protection and temperature regulation
- High-temperature safety stop ensures water temperature maximum is 100° F (37.7 C)°
- 1/2†NPT female thread (inlet and outlet) valve body
- Mounting tabs located on rough-in for secure installation option
- Requires Newport Brass Thermostatic Trim (many options available, sold-separately)
